i2001 is a 1-D short Distance Tof Chip that has higher accuracy compared to traditional amplitude based proximity sensors, smaller size compared to traditional infrared solutions, and lower power consumption compared to traditional ToF chips. It can be easily used without the need for an external MCU, and is easy to calibrate dToF chips that support one click software support.
Higher precision measurement
Higher precision compared with traditional amplitude based proximity sensor
Working without MCU
Easy to use with or without requirement of external MCU
1-Key easy calibration Compact size for threshold distance set-up
Easy calibration with one-click software supported|
Specification |
Description |
|
Technical |
Time of Flight |
|
Wave Length |
940nm
|
|
Frame Rate |
Up to 200Hz |
|
Error |
＜1.5cm |
|
Max Distance Range |
2m@80% reflectivity |
|
Package |
OLGA-18 |
|
Fol |
23° |
|
FOV |
25° |
|
Size |
4.5 x 2.9 x 1.008mm |

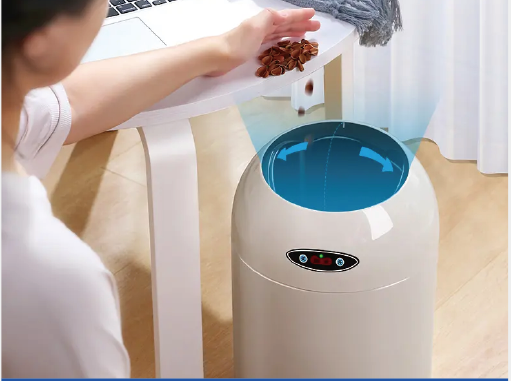

Trash can open
Had dryer

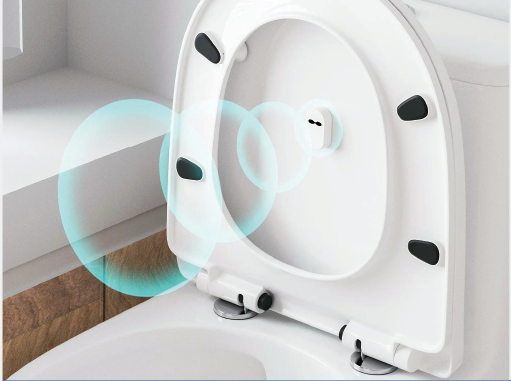

Toilet seat lid open
